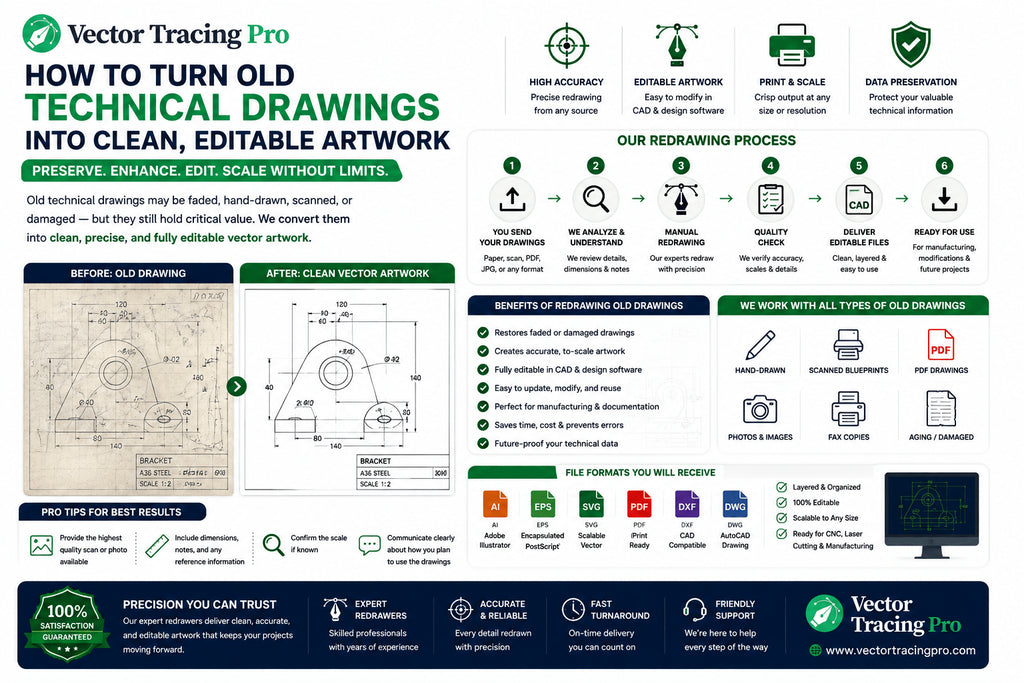

How to Turn Old Technical Drawings into Clean, Editable Artwork

Do you have an old blueprint, scanned engineering drawing, or technical sketch that exists only as a faded image or PDF?

Maybe the original CAD file is missing. Maybe the drawing was created decades ago and the only copy left is a scanned document. Or perhaps you have a technical drawing that looks clear enough on screen but becomes difficult to edit, resize, or use in modern design software.

You don't necessarily need to recreate the entire drawing from scratch.

Technical drawing vectorization can turn old, scanned, or raster-based artwork into clean, editable digital artwork that is easier to modify, scale, archive, and prepare for modern workflows.

In this guide, we'll explain how the process works, why vectorization matters, and what businesses should know before converting old technical drawings into digital files.

What Is Technical Drawing Vectorization?

Technical drawing vectorization is the process of converting a raster-based drawing into vector artwork.

A scanned blueprint, JPG, PNG, or image-based PDF is made up of pixels. Vector artwork, on the other hand, uses editable paths, lines, curves, and shapes.

Instead of simply placing the old image inside a design program, vectorization recreates the important elements of the drawing as digital paths.

This can make the artwork:

• Easier to edit


• Easier to scale


• Cleaner and sharper


• More useful for digital workflows


• Better suited for production applications


• Easier to archive and reuse

For businesses working with old engineering documents, manufacturing drawings, architectural artwork, or technical illustrations, this can be a practical way to bring older artwork into a modern workflow.

Why Are Old Technical Drawings Difficult to Use?

Older drawings can look perfectly understandable to a person while still being difficult for modern software to work with.

A scanned drawing may contain:

• Faded lines


• Stains


• Paper texture


• Handwritten notes


• Broken lines


• Uneven curves


• Shadows from scanning


• Low image resolution


• Distorted dimensions


• Background noise

These imperfections become a problem when the drawing needs to be edited or reused.

Simply increasing the image resolution doesn't recreate missing information.

That's why vectorization is different from image upscaling.

Vectorization vs. Simply Increasing Image Resolution

Imagine you have a small scanned blueprint.

You could use an image-upscaling tool to make the image larger. The file may become bigger, but the original pixels are still there.

Upscaling changes the size of the image.

Vectorization changes the way the artwork is constructed.

During vectorization, important lines and shapes are recreated as editable paths.

This means the final artwork can be manipulated rather than simply viewed as a picture.

For technical drawings, that distinction can make a major difference.

How to Turn an Old Technical Drawing into Editable Artwork

The process can vary depending on the quality and complexity of the original drawing, but a professional workflow generally involves several important stages.

1. Start With the Best Available Source

The quality of the source drawing affects the quality and accuracy of the final artwork.

If possible, provide the highest-quality version available.

Useful source files may include:

• High-resolution scans


• PDF drawings


• JPG images


• PNG files


• Photographs of TIFF files


• drawings


• Existing vector files

Even if the original drawing is old or damaged, it can still provide valuable reference information.

The goal is to preserve as much original detail as possible before reconstruction begins.

2. Clean Up the Reference Artwork

Before tracing or recreating the drawing, unnecessary visual noise may need to be removed.

This can include:

• Dust


• Scanning marks


• Background shadows


• Stains


• Random pixels


• Paper texture


• Unwanted handwritten marks

Cleaning the reference makes it easier to distinguish the actual technical elements from imperfections caused by age or scanning.

However, important information should never be removed simply because it looks unusual.

A professional vectorization process should prioritize the original drawing's intended information.

3. Identify the Important Elements

Technical drawings aren't just collections of random lines.

They can contain different elements that serve specific purposes.

Depending on the project, these may include:

• Straight lines


• Curves


• Circles


• Arcs


• Shapes


• Borders


• Symbols


• Dimensions


• Labels


• Section marks


• Technical annotations

Each element needs to be handled appropriately during the vectorization process.

This is one reason why technical drawing vectorization requires more attention than simply applying an automatic image-tracing filter.

4. Recreate Lines and Curves as Vector Paths

This is where the drawing starts becoming truly editable.

Instead of keeping the original pixels, the important geometry is recreated using vector paths.

Straight lines can be rebuilt accurately, while curves and arcs can be reconstructed using appropriate control points.

The objective is not to create thousands of unnecessary points.

A clean vector file should contain organized and efficient paths that represent the artwork accurately.

Too many unnecessary anchor points can make a file difficult to edit and may create problems in downstream workflows.

5. Preserve Scale and Proportions

For technical artwork, appearance isn't the only concern.

Accuracy matters.

If the drawing is being prepared for engineering, manufacturing, fabrication, or another technical application, dimensions and proportions need to be handled carefully.

Before beginning the conversion, it's important to understand:

• Original dimensions


• Required scale


• Units of measurement


• Final application


• Required file format

If accurate measurements are available, they can help establish the correct scale of the recreated artwork.

A vectorized drawing that looks visually correct but has incorrect proportions may still be unsuitable for professional use.

6. Recreate Text and Annotations Carefully

Technical drawings often contain important labels, measurements, notes, and other text.

These elements can be difficult to recover from poor-quality scans.

If the original font is known, it may be possible to recreate the text using an appropriate typeface.

In other situations, text may need to be manually recreated or converted into vector outlines depending on the intended application.

The important thing is to maintain readability while preserving the original design as closely as possible.

7. Check the Artwork for Errors

Before the vector file is considered complete, the artwork should be carefully inspected.

Look for:

• Open paths


• Broken lines


• Overlapping elements


• Missing shapes


• Incorrect curves


• Unwanted anchor points


• Inconsistent linework


• Incorrect scale


• Missing text or annotations

This quality-control stage is particularly important when the artwork will eventually be used for production.

A file that looks correct at first glance may still contain hidden problems that become apparent during editing, cutting, or manufacturing.

Why Manual Vectorization Can Be Better Than Automatic

Tracing Automatic tracing tools can be useful for simple artwork.

However, technical drawings can contain complicated geometry and fine details that automated software may interpret incorrectly.

Automatic tracing can create:

• Excessive anchor points


• Rough curves


• Unnecessary shapes


• Incorrect intersections


• Broken geometry


• Distorted details

For a simple icon, these issues may not matter much.

For a technical drawing, they can affect the usability of the final file.

Manual vectorization gives the designer greater control over how each important element is recreated.

This can be especially valuable for old, low-quality, or highly detailed technical drawings.

What File Formats Can Be Created?

The appropriate output depends on how the artwork will be used.

Common vector and technical formats include:

SVG

Useful for scalable digital artwork, websites, and certain production workflows.

AI

Adobe Illustrator's native format, useful when the artwork needs further editing in Illustrator.

EPS

A widely supported vector format used across many professional design and printing workflows.

PDF

Useful for sharing and printing, although it's important to confirm whether the PDF contains actual vector artwork.

DXF

Particularly useful for CAD, CNC, laser cutting, plasma cutting, fabrication, and other production workflows where DXF is supported.

The correct format should always be selected based on the requirements of the software, machine, designer, or production company receiving the file.

Who Can Benefit From Technical Drawing Vectorization?

This service can be useful for a wide range of professionals and businesses in the United States.

Engineers

Old engineering drawings can be converted into editable digital artwork for easier reference and documentation.

Manufacturers

Manufacturing companies may have older drawings that need to be incorporated into current workflows.

Fabricators

Vectorized artwork can help prepare designs for fabrication and production.

CNC Shops

Clean vector geometry can be useful when preparing files for CNC-related workflows.

Architects and Designers

Older plans, diagrams, and illustrations can be preserved in editable digital formats.

Product Developers

Companies working with legacy product drawings can digitize older artwork for modern projects.

Sign and Cutting Businesses

Technical artwork may need to be converted into suitable vector formats before production.

What If You Only Have a Scanned Blueprint?

Don't assume that a missing CAD file means the drawing has to be recreated from zero.

A scanned blueprint can often serve as the reference for rebuilding the artwork digitally.

The more accurate and readable the scan, the easier it is to identify the original geometry.

However, even a damaged or low-resolution drawing may still be usable if enough information remains visible.

For complicated projects, it's helpful to have any additional information available, such as:

• Original dimensions


• Measurements


• Notes


• Previous file versions


• Reference drawings


• Known fonts


• Required output format

These details can help improve the accuracy of the final vector artwork.

Why Businesses Should Digitize Old Technical Drawings

Keeping important drawings trapped in old paper files or low-resolution scans can create unnecessary problems.

Digitizing them can make it easier to:

• Reuse older designs


• Make future edits


• Create backup copies


• Share artwork digitally


• Prepare files for modern software


• Preserve important technical information


• Adapt artwork for new production requirements

Instead of repeatedly searching through physical documents or working with poor-quality scans, businesses can maintain a cleaner digital archive.

Final Thoughts

Old technical drawings don't have to remain locked inside faded scans, photographs, or outdated documents.

With professional technical drawing vectorization, important lines, curves, shapes, and other design elements can be recreated as clean, editable digital artwork.

The process goes beyond simply making an image larger. It involves analyzing the original drawing, rebuilding important geometry, maintaining proportions, cleaning the artwork, and preparing the final file for its intended use.

Whether you have an old blueprint, engineering drawing, manufacturing illustration, or scanned technical document, vectorization can give that artwork a new life in a modern digital workflow.

And if your final application requires a production-ready format such as DXF, the vectorized artwork can be prepared according to the requirements of your CNC, laser, fabrication, or CAD workflow.

Frequently Asked Questions

Q1. Can old technical drawings be converted into vector files?

Yes. Scanned technical drawings, PDFs, JPGs, and other raster-based references can often be recreated as vector artwork.

Q2. Can a scanned blueprint be converted to DXF?

Yes, depending on the quality and complexity of the original drawing. The artwork can be vectorized and prepared as a DXF file when the project requires it.

Q3. Is automatic tracing accurate enough for technical drawings?

Automatic tracing can work for simple designs, but complex technical drawings may require manual cleanup and reconstruction to achieve cleaner and more accurate results.

Q4. Can vectorized technical drawings be edited?

Yes. Properly created vector artwork consists of editable paths and elements, making it easier to modify than a flat raster image.

Q5. What information should I provide for technical drawing vectorization?

Provide the best-quality source drawing available along with dimensions, scale, units, reference files, and the required output format whenever possible.

Q6. What is the best format for a technical drawing?

There is no single best format for every project. AI, EPS, SVG, PDF, and DXF can all be useful depending on whether the artwork is intended for design, digital use, CAD, CNC, laser cutting, or manufacturing.
