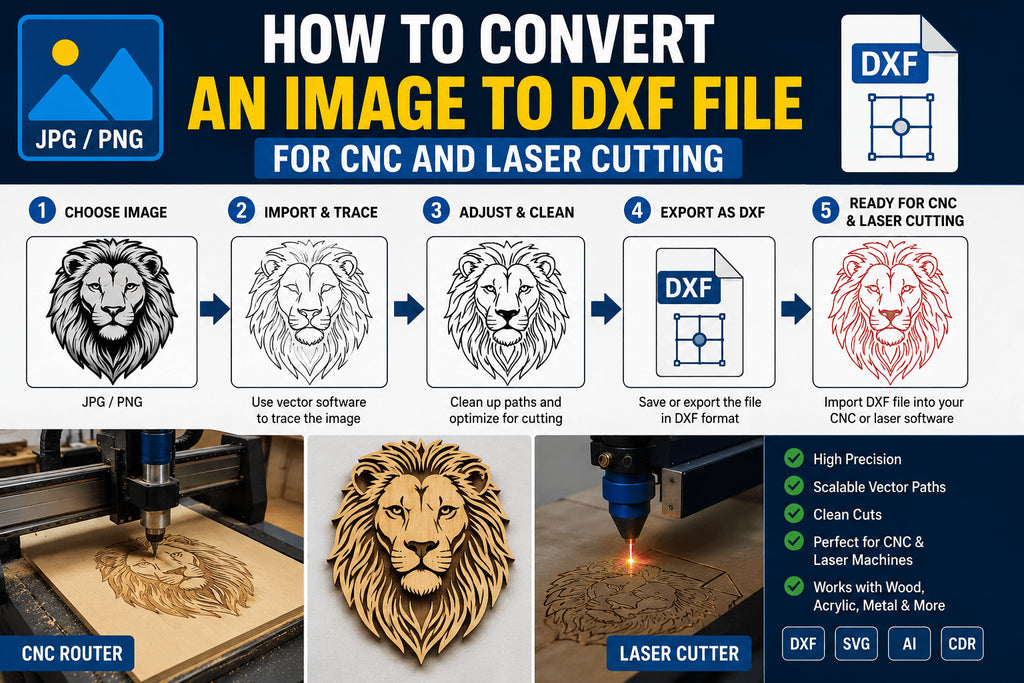

How to Convert an Image to a DXF File for CNC and Laser Cutting

Whether you’re creating custom metal signs, wooden decor, acrylic designs, or precision-cut machine parts, one thing remains the same—your CNC or laser cutting machine needs the right file format to produce accurate results.

Many beginners assume they can upload a JPG or PNG image directly into a CNC machine, but that’s not how the process works. Raster images are made of pixels, while CNC routers and laser cutters require vector paths to follow precise cutting lines.

This is where DXF (Drawing Exchange Format) files become essential.

In this guide, you’ll learn how to convert an image into a DXF file, why vector artwork matters, and the best practices for creating clean, production-ready files for CNC and laser cutting projects.

What Is a DXF File?

DXF (Drawing Exchange Format) is a vector-based file format developed to exchange design data between CAD programs and manufacturing equipment.

Unlike JPG or PNG images, a DXF file contains mathematical paths instead of pixels. These paths tell CNC routers, laser cutters, plasma cutters, and waterjet machines exactly where to cut or engrave.

Because of its accuracy and compatibility, DXF has become one of the most widely accepted file formats in manufacturing and fabrication.

Why Can’t You Use a JPG or PNG File?

Images downloaded from websites or saved as JPG and PNG files are raster graphics. They may look sharp on a screen, but they don’t contain the vector information needed for cutting machines.

Using a raster image can result in:

·       Blurry or uneven cut lines

·       Missing design details

·       Inaccurate dimensions

·       Production delays

·       Additional editing costs

To achieve clean and precise cuts, your image must first be converted into a true vector file and then exported as a DXF.

When Do You Need a DXF File?

DXF files are commonly used for:

·       CNC routing

·       Laser cutting

·       Plasma cutting

·       Waterjet cutting

·       Metal fabrication

·       Woodworking

·       Acrylic cutting

·       Sign making

·       Custom décor projects

·       Automotive components

If your design will be cut by a machine, a DXF file is often the safest and most compatible choice.

Step 1: Start with the Best Quality Image

The quality of your DXF file depends heavily on the original artwork.

Whenever possible, use:

·       High-resolution logos

·       Clear illustrations

·       Black-and-white artwork

·       Original design files

·       Scanned drawings at 300 DPI or higher

Avoid blurry screenshots or heavily compressed images, as they require additional cleanup before conversion.

Step 2: Convert the Image into Vector Artwork

Before creating a DXF file, the image must be converted into vector artwork.

This process recreates the design using editable paths instead of pixels.

Professional vector tracing provides:

·       Smooth curves

·       Accurate shapes

·       Clean edges

·       Scalable artwork

·       Better machine compatibility

A properly vectorized design forms the foundation of a high-quality DXF file.

Step 3: Clean Up the Artwork

Not every image is ready for manufacturing.

Before exporting your file, it’s important to remove unnecessary elements such as:

·       Backgrounds

·       Shadows

·       Duplicate lines

·       Open paths

·       Tiny details that won’t cut properly

Cleaning the artwork helps improve cutting accuracy and reduces machine errors.

Step 4: Export the Artwork as a DXF File

Once your design has been vectorized and optimized, it can be exported as a DXF file.

During export, make sure to:

·       Preserve vector paths

·       Maintain the correct dimensions

·       Convert text to outlines

·       Check for open or overlapping paths

·       Save a master AI or SVG copy for future edits

Following these steps ensures your file is ready for CNC routers, laser cutters, and other manufacturing equipment.

Why Manual Vector Tracing Produces Better DXF Files

Many online tools promise instant image-to-DXF conversion, but they often create poor-quality files.

Automatic conversion can introduce:

·       Jagged edges

·       Excessive anchor points

·       Broken paths

·       Distorted lettering

·       Rough curves

Professional manual vector tracing recreates every element with precision, resulting in cleaner vector paths and more reliable machine performance.

For business logos, detailed artwork, and production-grade projects, manual tracing consistently delivers superior results.

Best Software for Creating and Editing DXF Files

Creating a high-quality DXF file starts with using the right software. While many design programs support DXF, some are better suited for professional CNC and laser cutting workflows.

Adobe Illustrator

Adobe Illustrator is ideal for converting logos, illustrations, and artwork into clean vector graphics before exporting them as DXF files.

AutoCAD

AutoCAD is one of the most trusted CAD programs for creating technical drawings and production-ready DXF files. It offers precise measurements and advanced editing tools for engineering and manufacturing projects.

CorelDRAW

CorelDRAW is widely used by sign makers, laser engraving businesses, and print professionals. It provides excellent support for vector editing and DXF export.

Inkscape

Inkscape is a free, open-source vector editor that can create and edit SVG files before converting them into DXF. It’s a good option for beginners and hobbyists.

No matter which software you choose, always review your file before sending it to a CNC router or laser cutter.

Common DXF File Mistakes to Avoid

Even a vector file can cause production problems if it isn’t prepared correctly. Here are some common mistakes to watch for:

Open Paths

Open paths prevent machines from following complete cutting lines. Always ensure every shape is fully closed before exporting your file.

Duplicate Lines

Overlapping paths can cause the machine to cut the same area multiple times, increasing production time and material waste.

Too Many Anchor Points

Automatic conversion tools often create unnecessary anchor points that make curves rough and reduce cutting precision. Simplifying paths improves machine performance.

Incorrect Scale

Always confirm your design is saved at the correct size. Scaling errors can lead to parts that don’t fit together or products that fail quality checks.

Forgetting to Convert Text to Outlines

If your file contains editable fonts, convert them into outlines before sharing the artwork. This prevents missing fonts and formatting issues on another computer.

Why Manufacturers Prefer DXF Files

DXF has become one of the most trusted file formats in manufacturing because it offers excellent compatibility and precision.

Professional fabricators prefer DXF files because they:

·       Work with most CNC routers and laser cutters.

·       Preserve accurate dimensions.

·       Support clean vector paths.

·       Reduce production errors.

·       Improve workflow between designers and manufacturers.

For businesses producing custom parts, signage, décor, or industrial components, DXF files help ensure consistent, repeatable results.

Industries That Use DXF Files

DXF files are used across a wide range of industries in the United States, including:

·       Sign making

·       Metal fabrication

·       Woodworking

·       Furniture manufacturing

·       Automotive production

·       Architecture

·       Product design

·       Jewelry making

·       Industrial engineering

·       Acrylic fabrication

·       HVAC manufacturing

·       Custom home décor

From small workshops to large manufacturing facilities, DXF remains a trusted standard for precision cutting and fabrication.

Final Thoughts

Converting an image into a DXF file is an essential step for anyone working with CNC routers, laser cutters, or other computer-controlled cutting machines. While JPG and PNG images are useful for digital viewing, they lack the vector paths required for accurate production.

By starting with clean vector artwork, simplifying unnecessary details, and exporting a properly optimized DXF file, you can improve cutting accuracy, reduce material waste, and achieve professional-quality results.

If your artwork only exists as a raster image, investing in professional manual vector tracing before DXF conversion is the best way to create reliable, production-ready files for manufacturing, signage, and custom fabrication.
